Arithmatic Operators

The arithmetic operators:

  • Additive and multiplicative operators are binary because they require two operands.

  • The unary operators require one operand:

    • i = +1 where + is used as a unary operator

    • j = -i where - is used as a unary operator

Unary + operator does nothing, and wasn’t even included in K&R’s C. It is generally used to emphasize that it is a constant is positive.

Binary operators, with the exception of %, allow for mixing integers and floating-point numbers.

  • When an int and float are mixed, the result is of type float

    • e.g. 9 + 2.5 = 11.5

The / and % operators are a bit different:

  • The / can produce unusual results, because when both operands are integers, the / truncates the result by dropping the fractional part

    • e.g. 1/2 = 0

  • The % operator require integer operands, otherwise it won’t compile.

  • A zero on either side of / or % will cause undefined behavior.

  • C89 and C99 handle negative numbers with / and & different:

    • C98: If either operand is negative, the result can be rounded up or down (depends on implementation)

    • C99: The results if either operand is negative are always truncated down towards zero

      • e.g. -9/7 = -1 and -9%7 = -2

Implementation defined behavior

The C standard deliberately left parts of the language unspecified with the understanding that “implementation”, or the software needed to compile, link, and execute program on a specific platform, will fill in the details.

  • Because of this, some programs may behave differently on different platforms.

  • This is a bit dangerous but it reflect’s C’s philosophy - keep it efficient.

Operator Precedence and Associativity

C uses operator precedence to resolve ambiguity in how expressions are evaluated It follows the following relative precedence:

Highest + , - (unary)
* , /, %
Lowest +, - (binary)

An operand is said to be left associative if it groups from left to right.

  • The binary arithmetic operators (*, /, %, +, and -) are all left associative. Therefore,

  • i - j - k == (i - j) - k

  • i * j / k == (i * j / k)

Operands are said to be right associative if it groups from right to left. The unary operators + and - are right associative, therefore:

  • - + i == -(+i)

Computing a UPC Check Digit

Products in US and Canada have a bar code, a Universal Product Code (UPC), that identifies the manufacturer and the product.

  • Each barcode is a 12-digit number, that is usually printed underneath the bars.
  • For example, 0 13800 15173 5 are the digits for a package of Stouffer’s French Bread Pepperoni Pizza.
    • The first digit identifies the type of item (0-7)
      • 2 that needs to be weighed, 3 for drugs/health, 6 for coupons
    • The next group of 5 digits is the manufacturer code (e.g. 13800 is Nestle)
    • The next 5 digits identifies the product (including the size)
    • The final digit is the check digit that helps identify errors in the preceding digits.
      • If the UPC is scanned incorrectly, the first 11 digits won’t be consistent with the check digit, and it will be rejected.

How the check digit is calculated:

  1. Add the first, third, fifth, seventh, ninth, and eleventh digits
  2. Add the second, fourth, sixth, eighth, and tenth digits
  3. Multiply the first sum by 3 and add it to the second sum
  4. Subtract 1 from the total
  5. Divide by 10
  6. Subtract the remainder from 9

For the Stouffer’s example:

  1. 0 + 3 + 0 +1 +1 +3 = 8
  2. 1 + 8 + 0 + 5 + 7 = 21
  3. 24 + 21 = 45
  4. 45 - 1 = 44
  5. 44 / 10 = 4.4 or 4
  6. 9 - 4 = 5

We can write a program that creates a check digit based on UPC groups:

Enter the first (single) digit: 0
Enter the first group of five digits: 13800
Enter the second group of five digits: 15173
Check digit: 5
  • We will read each 5-digit grouping as five 1-digit numbers.
/* Computes a Universal Product Code check digit */

#include <stdio.h>

int main(void)
{
    int d, i1, i2, i3, i4, i5, j1, j2, j3, j4, j5,
        first_sum, second_sum, total;

    printf("Enter the first (single) digit: ");
    scanf("%1d", &d);
    printf("Enter first group of five digits: ");
    scanf("%1d%1d%1d%1d%1d", &i1, &i2, &i3, &i4, &i5);
    printf("Enter second group of five digits: ");
    scanf("%1d%1d%1d%1d%1d", &j1, &j2, &j3, &j4, &j5);

    first_sum = d + i2 + i4 + j1 + j3 + j5;
    second_sum = i1 + i3 + i5 + j2 + j4;
    total = 3 * first_sum + second_sum;

    printf("Check digit: %d\n", 9 - ((total - 1) % 10));

    return 0;

}

Assignment Operators

C’s = (simple assignment) operator is used to store a value in a variable to use later.

  • For updating a value that is already stored n a variable, C has compound assignment operators.

Simple assignment

  • v = e evaluates the expression e and copies its value into v

  • v and e doesn’t have to be the same type. The value of e will be converted to type v when the assignment takes place.

While many languages treat assignment as a statement, in C, assignment is an operator, just like +.

  • The act of assignment produces a result, just as adding two numbers produces a result.

  • The value of an assignment v = e is the value v after the assignment.

    • e.g. The value i = 72.99f is 72 not 72.99

Side effects

  • Most operators don’t modify their operands - i + j doesn’t modify i or j, just, computes the sum of i and j.

  • Some operators have side effects as they do more than just compute their value.

    • The assignment operator has side effects as it modifies the left operand.

      • i = 0 produces the result 0 with a side effect of assigning 0 to i

Since assignment is an operator, several can be changed together: i = j = k = 0;

  • The = operator is right associative, so i = j = k = 0; is equal to i = (j = (k = 0));

Note - Be careful of unexpected results in chained assignments as a result of type conversion:

int i;
float f;

f = i = 33.3f;
  • i is assigned the value of 33, then f is assigned 33.0 (not 33.3)

The form v = e is generally allowed whenever a value of type v would be permitted. For example:

i = 1;
k = 1 + (j = i);
printf("%d %d %d\n", i , j , k); /* prints "1 1 2" */

  • j = i copies i to j

  • The new value of j is then added to 1, giving k the value of 2.

  • This is not a recommend way of assignment as “embedded assignments” are hard to read and can be a source of subtle bugs.

Lvalues

The assignment operator requires an lvalue, which is the left operand.

  • The lvalue represents an object stored in memory, not a constant or a result of a computation.

  • Variables are lvalues, whereas expressions are not (10, 2*i, etc)

Compound assignment

Suppose we want to increase a variable’s value by 2:

i = i + 2;

We can also use C’s compound assignments to shorten these types of statements:

i += 2; /* same as i = i + 2*/
  • The value of the right operand is added to the variable on the left.

The most popular compound assignment operators:

  • v += e adds v to e, storing the result in v

  • v -= e

  • v *= e

  • v /= e

  • v %= e

Note: v += e is not equivalent to v = v + e

  • One problem is the operator precedence: i *= j + k isn’t the same as i = i * j + k

  • There are cases where v += e differs from v = v + e because v itself has a side effect.

  • This applies to the other compound assignment operators

Compound assignment operators have the same properties as the = operator (e.g. right associative):

/* These are equivalent */
i += j += k;
i += (j += k);

Increment and Decrement operators

C allows increments and decrements to be shortened using the ++ (increment) and -- (decrement)

  • These can be used as prefix operators (e.g. ++i and --i)

  • These can be used as postfix operators (e.g. i++ and i--

Like assignment operators, they have side effects.

  • Prefix (++i) does a pre-increment, where it does i + 1 and as a side effect, increments i\

    • This means - “increment i immediately”.

  • Postfix (i++) does the post-increment, where it produces the result i and as a side effect, increments it afterwards.

    • This means “use the old value of i for now, and then increment i later”

    • Note: The C standard doesn’t specify an exact time when it increments i later, but it’s assumed that it will be incremented before the next statement is executed.

i = 1
printf("i is %d\n", i++); /* prints "i is 1" */
printf("i is %d\n", i); /* prints "i is 2" */

The postfix versions of ++ and == have:

  • Higher precedence than unary plus and minus

  • Are right associative

Expression Evaluation

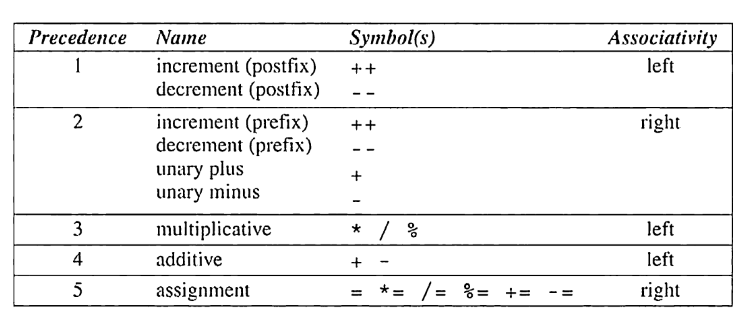

The most common operators with their precedence (highest is 1) , symbol, and associativity:

Suppose we have the following expression:

a = b += c++ - d + --e / - f

  • The highest precedence is postfix ++, which gives the equivalent expression a = b += (c++) - d --e / -f

  • The next highest is prefix -- and unary -, with a precedence of 2, which gives us a = b += (c++) - d + (--e) / (-f)

    • Since the other - is to the left it must be subtraction not unary

  • The next highest is / with a precedence of 3, which gives us a = b += (c++) - d + ((--e) / (-f))

  • The next highest is 4, with both a + and a -.

    • These are associative left, so the parentheses go around the subtraction first then adding both parentheses groups, which gives us a = b += (((c++) - d) + ((--e / (-f)))

  • Lastly, we have the assignments = and += that are both 5s, which gives us (a = (b += ((c++) - d + ((--e) / (-f)))))

Order of subexpression evaluation

C doesn’t define the order in which subexpressions are evaluated with the exception of ones involving logical and, logical or, conditional, and comma operators.

  • This means for the expression (a + b) * (c - d), we don’t know if (a + b) is evaluated before/after (c-d)

Note: Avoid writing expressions that access the value of a variable and also modify the variable elsewhere in the expression. For example:

(b = a + 2) 0 (a = 1)

  • This accesses the value of a to compute a + 2 but also modifies the value of a by assigning it to 1.

  • Your better off using assignment operators in subexpressions:

a = 5;
b = a + 2;
a = 1;
c = b = a;

Besides assignment operators, increment and decrement are the only operators that modify their operands. Make sure to be careful using these so they don’t depend on a particular order of operations:

  • e.g. i = 2; j = i * i++;

This is an example of undefined behavior, which means it the results are dependent on the compiler. Programs could fail to compile, return/assign a random value, or crash.

Expression Statements

Any expression can be used as a statement regardless of the type or what it computes.

  • Ending an expression with a semicolon turns it into a statement.

  • i++; is a valid statement
